Convex Array

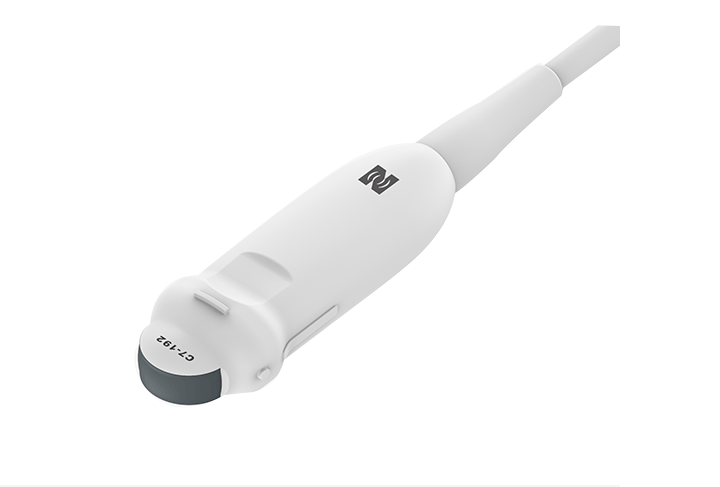

C7-192

Feature

1. Single crystal composite material；
2. Higher Bandwidth (-6db)，the image is fine；
3. High sensitivity to get better penetration；
4. Better signal-to-noise ratio.

Product Parameter

Probe Name	Type	Element	CF6	BW6	Pitch	EA	Focal Depth
C7-192	Convex Array	192	7MHz	80%	0.13mm	6.5mm	15.5mm
